| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | Ally Hi-Tech |
| 모델 번호: | PSA |
| 가격: | Negotiable |
| 포장 세부 사항: | 항해에 적당한 포장 |
| 제품 가스: | 높은 순수성 수소 | 기술: | Pantented |
|---|---|---|---|
| 참고: | 120 이상 | 작동: | 안정과 안전 |
| 애플리케이션: | 가스 분리와 정화 | 수소의 순도: | 98%-99.999% |
| 수소 수용량: | 500-50,000 Nm3/h | 이 수용량: | 1,000-100,000 Nm3/h |
| 하이 라이트: | 99.999% 수소 발생 장치,PSA 수소 발생 장치,PSA 수소 제조 공정 50000 Nm3/H |
||

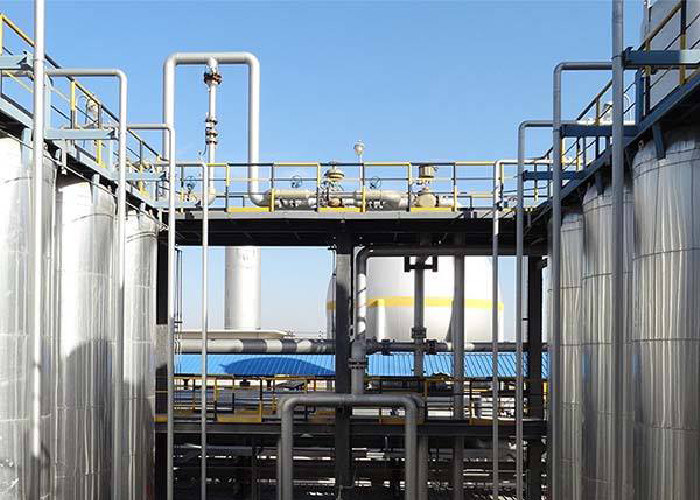

PSA Plant With a High Purity of Hydrogen at a Low Cost
PSA, standing for Pressure Swing Adsorption, is a technology that widely used for gas separation and purification. Moreover, it is also used to produce high purity of hydrogen from hydrogen-rich gases which is done by hydrogen purification plants.
Ally Hi-Tech has been contributing to innovate and enhance the technologies of hydrogen production for 20 years, attained 40 patents and two of them were from Europe and USA, respectively. Moreover, 8 new patents are under the application process now.
As a Chinese hydrogen pioneer, Ally has designed and supplied more than 125 PSA hydrogen plants in the world. In addition, we have a PSA unit for each Methanol or SMR hydrogen production plant as well.
Performance
• COG Capacity: 1,000~100,000 Nm3/h
• Naphthalene content in Product: ≤ 20 mg/Nm3
• Tar content in Product: ≤ 8 mg/Nm3
• Sulfur content in Product: ≤ 10 mg/Nm3
• Hydrogen Purity: 98%~99.999% (v/v)
• Pressure: 0.5 ~3 .0 MPa(G)
• Hydrogen Capacity: 500~50,000 Nm3/h
Process Description
Pressure swing adsorption (PSA) for hydrogen extraction is to selectively adsorb the non-hydrogen components in the hydrogen-rich mixture under the pressure, so as to accomplish the purpose of separating hydrogen from other gas components. In the meantime, the adsorbent releases the adsorbed impurity gas under pressure release so that the adsorbent can regain its adsorption capacity.
